SAFE INSTALLATION + USE

Power Safety Starts
With Proper Setup

Before installing or using an Omnicharge PowerStation, review the product manual and safety guide for your model. The guidance below highlights the most important practices for setup, everyday use, battery care, storage, and replacement.

Product Documents

Model-specific instructions and ratings
Family-Level Safety Guidance PowerStation Setup + Safe Use

Prepare The Right PlaceBefore Installation

A safe installation starts before the station is switched on. Check the room, surface, ventilation, outlet, and planned load together, then confirm the exact limits in your model manual.

01 Choose an indoor location with a hard, flat, stable surface and clear access to the station.
02 Confirm the room is cool, dry, and within the operating environment stated in the selected model manual.
03 Leave the ventilation clearances required by the manual and keep every intake and outlet unobstructed.
04 Use the original cable and a suitably rated grounded outlet, and confirm that the outlet and planned load are appropriate for the selected model.

Site Readiness

Confirm all four conditions.

01Stable Hard, flat indoor surface
02Ventilated Keep every vent clear
03Suitable Confirm model limits
04Powered Rated grounded outlet
Family-Level Safety Guidance PowerStation Setup + Safe Use

Keep The Station AwayFrom Unsuitable Environments

Placement affects ventilation, temperature, electrical safety, and the ability to inspect the station. Keep these common risks out of the installation area.

01 Do not install the station inside a cabinet, covered compartment, or other space that restricts airflow.
02 Keep it away from direct sunlight, heaters, cooking equipment, and other high-temperature sources.
03 Avoid liquids, damp or high-humidity areas, excess dust, and locations exposed to corrosive substances.
04 Keep flammable materials away, never block the vents, and do not place items on top of the station.

Do Not Install Here

Remove these risks from the area.

01Enclosed Cabinets or covered spaces
02High heat Sunlight, heaters, cooking
03Wet or dusty Liquids, damp, excess dust
04Obstructed Blocked vents or items on top
Family-Level Safety Guidance PowerStation Setup + Safe Use

Install The StationIn Four Clear Steps

Once the site is ready, complete the physical and electrical setup in order. Nothing should need to be forced.

01 Inspect the station, batteries, bays, and original power cable before installation.
02 Insert each battery level, with its contacts downward and display facing forward, without using force.
03 Connect the original cable directly to a suitably rated, properly grounded outlet and keep it free from pinching or crushing.
04 Switch on the station and confirm the expected station display and battery icons appear.

Installation Sequence

Move from inspection to verification.

01Inspect Station, batteries, cable
02Insert Level, contacts downward
03Connect Original cable, grounded outlet
04Verify Display and battery icons
Family-Level Safety Guidance PowerStation Setup + Safe Use

Use The Station CarefullyAnd Store It Correctly

During normal operation, preserve the installation conditions and use the display to confirm status. For longer non-use, power the system down deliberately.

01 Keep the station stable and dry, preserve the required clearances, and leave all vents unobstructed throughout use.
02 Protect the cable, remain within the model's approved load, and check the display and battery indicators periodically.
03 Before an extended period of non-use, switch off the station and batteries and disconnect AC power as directed by the model manual.
04 For storage, keep the system cool and dry, avoid severely depleted batteries, and follow the model's maintenance-charge schedule.

Use + Storage

Two modes, one careful routine.

ONPreserve airflow Stable, dry, model limits
ONMonitor Check display and battery icons
OFFPower down Before extended non-use
OFFMaintain Follow the model schedule
Family-Level Safety Guidance PowerStation Setup + Safe Use

Make Cleaning And CareA Straightforward Routine

Routine visual checks and dry cleaning help keep vents, bays, cables, and contact areas clear without exposing the system to liquids or unapproved service.

01 Switch off the station, disconnect the power cable, and remove every battery before cleaning.
02 Use a soft, dry cloth only; do not spray cleaners or allow liquid into vents, bays, ports, or contact areas.
03 Inspect the cable, vents, bays, enclosure, and labels for damage, obstruction, or unusual wear.
04 Do not open, modify, or self-repair the station. Contact support when inspection or service is needed.

Care Sequence

Dry care only.

01Switch off Disconnect AC power
02Remove Take out every battery
03Clean Use a soft, dry cloth
04Inspect Vents, bays, cable, enclosure
Family-Level Safety Guidance Battery Safety + Handling

Begin Every UseWith A Quick Condition Check

A short visual check helps you confirm the battery is ready before use or charging.

01 Inspect the enclosure, display, ports, and charging contacts for visible damage or anything unusual.
02 Switch the battery on and confirm the expected screen state appears.
03 If it does not power on, shows an unfamiliar warning, or has been damaged, set it aside and do not return it to the station until the condition is resolved.

Before Every Use

Look, power on, confirm.

01Enclosure No damage or deformation
02Contacts Clean and unobstructed
03Display Expected screen state
04History No drop, heat, or liquid event
Family-Level Safety Guidance Battery Safety + Handling

Use The BatteryIn A Stable, Protected Environment

Thoughtful placement and handling help protect the enclosure, internal cells, and charging contacts.

01 Use the battery indoors on a hard, flat, stable surface with clear airflow.
02 Keep it away from direct sunlight, heaters, enclosed vehicles, flammable materials, liquids, and high humidity.
03 Protect it from drops, shocks, punctures, and crushing, and do not open, modify, or attempt to repair it.

Protect The Battery

Keep it within safe conditions.

01High heat Sun, heaters, enclosed vehicles
02Liquids Water, humidity, chemicals
03Impact Drops, shocks, crushing
04Self-repair Never open or modify
Family-Level Safety Guidance Battery Safety + Handling

Recharge CorrectlyAnd Know What Normal Looks Like

Correct alignment protects the contacts, while the display and normal idle behavior help teams understand the battery's charging state.

01 Hold the battery level, with the charging contacts downward and the display facing forward.
02 Lower it into an open bay without forcing or angling it.
03 Confirm the expected battery icon appears on the station and use the selected model manual for its expected recharge time.

Automatic Idle Behavior

100%
Charging pauses
~80%
Charging resumes

On current PowerStation models, charging pauses at full and resumes automatically around 80% while the battery remains docked. This expected idle cycle is not, by itself, a fault.

LevelContacts ↓Icon ✓
Family-Level Safety Guidance Battery Safety + Handling

Make Battery HealthEasier To Manage

Balanced fleet use, suitable storage, automatic cell management, and product-health indicators create one practical maintenance routine.

01 Rotate use across the available batteries instead of repeatedly selecting the same unit.
02 Before an extended period of non-use, power down the station and batteries as directed by the selected model manual.
03 For storage, keep batteries cool and dry, avoid leaving them severely depleted, and follow the model's maintenance-charge schedule.
04 Let the battery-management system perform internal cell balancing; do not open the pack or attempt manual cell service.
05 Review the battery-health indicator and plan service or replacement when the approved product guidance recommends it.

Battery Care Cycle

Use, rest, maintain, review.

01Rotate Balance use across the fleet
02Store Cool, dry, not depleted
03Maintain Follow the model schedule
04Review Follow health indicators
Family-Level Safety Guidance Battery Safety + Handling

Connect Every ConditionTo A Clear Next Action

The display, physical condition, and operating behavior work together. Use them to decide whether to continue under approved guidance, plan service, or remove a battery from use.

01 Match any on-screen indicator to the approved product guidance and follow the action for that exact state.
02 For an approved health alert with no physical or operating abnormality, follow the indicated guidance and plan service or replacement.
03 For damage, swelling, liquid exposure, unusual heat or odor, charging failure, an unresolved warning, or failure to power on: stop use and do not redock the battery.
04 Do not open or self-repair the pack. Ask support about inspection, replacement, return, or recycling.
05 When the end-of-life indicator appears, keep the battery out of service and use the approved local return or recycling path.

Condition → Action

01 · Recognized indicator Follow approved guidance
02 · Damage or unresolved state Stop use · Do not redock
03 · End of life Replace · Return · Recycle

INTEGRATED SAFETY ENGINEERING

Safety Engineered
Into Every Layer

Power architecture, battery management, thermal sensing, intelligent firmware, and mechanical protection are designed to work together.

01 / 05 · Electrical

Power architecture and electrical protection

The power path is designed to regulate voltage, current, and distribution while coordinating input, output, and device protection.

  • AC and high-voltage DC power conversion
  • Bidirectional DC power routing
  • Input, output, overload, and short-circuit protection
  • Low-loss pathways and dynamic load control

Supported response — Supported products regulate or interrupt power when monitored electrical conditions move outside the approved operating range.

Validated by — Electrical abuse, overload, short-circuit, surge, continuous-load, and power-conversion testing.

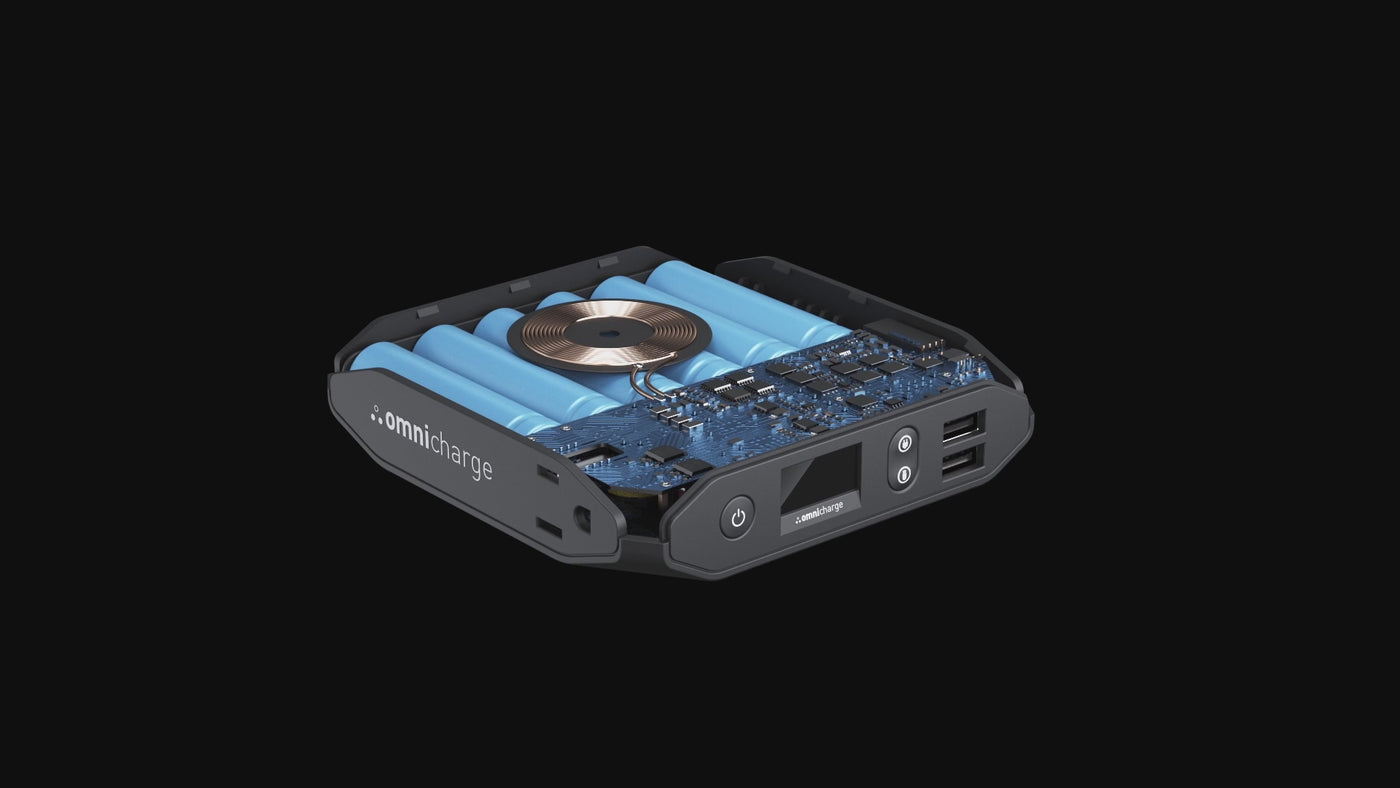

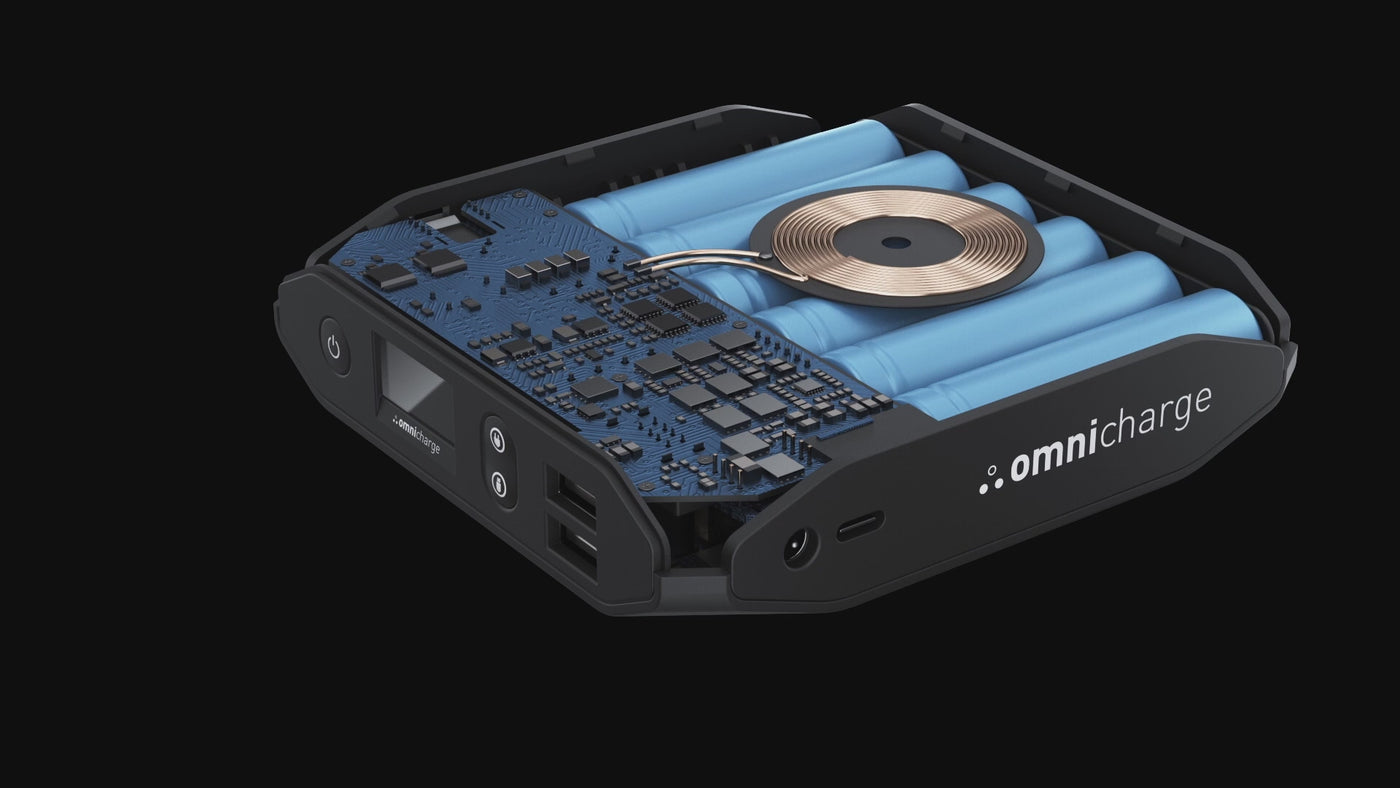

02 / 05 · Cells + BMS

Battery system and cell management

Qualified cells and battery-management supervision are designed to keep charge, discharge, and balancing within approved limits.

  • Qualified lithium cells and pack construction
  • Charge, discharge, and cell-balancing management
  • Overcharge, over-discharge, and current protection
  • State-of-health and usage monitoring

Supported response — Supported products limit or stop charging and discharging when monitored battery conditions move outside the approved range.

Validated by — Cell, pack, lifecycle, charging-behavior, and abuse testing.

03 / 05 · Temperature

Thermal management and sensing

Temperature sensing and thermal design are intended to keep operating heat within approved limits across real use.

  • Multi-point temperature sensing
  • Thermal design for sustained loads
  • Heat-based charge and output management
  • Protective response to abnormal temperature

Supported response — Supported products reduce power or pause operation when monitored temperatures move outside the approved range.

Validated by — Temperature, lifecycle, sustained-load, and environmental testing.

04 / 05 · Health

Firmware intelligence and monitoring

Firmware coordinates protection layers, monitors product health, and supports traceable improvement over time.

  • Coordinated protection logic
  • Condition and health monitoring
  • Fault detection and safe-state behavior
  • Traceable data for support and improvement

Supported response — Supported products apply protective logic automatically when monitored conditions change.

Validated by — Functional, fault-injection, and system-level validation testing.

05 / 05 · Structure

Mechanical design and protection

Enclosure, materials, and structure are designed to protect internal systems through handling, transport, and daily use.

  • Impact-resistant enclosure design
  • Material selection and flame-retardant use
  • Connector and interface protection
  • Structural integrity across the product life

Supported response — Supported products protect internal systems through structure and materials validated in real-use conditions.

Validated by — Drop, impact, compression, vibration, and enclosure-integrity testing.

SUPPLY CHAIN + MANUFACTURING

Built with control
at every step.

Safety begins with the components we select and continues through inspection, assembly, testing, and serial traceability.

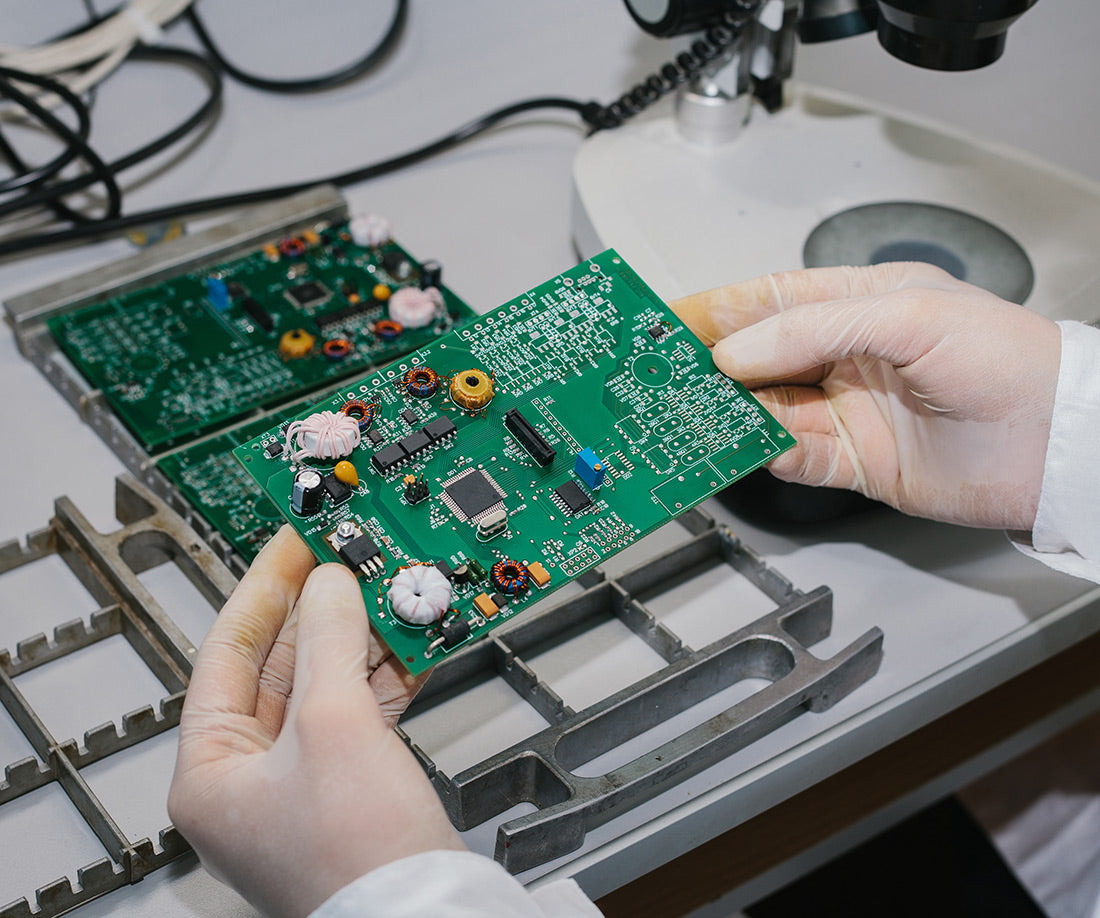

Set requirements before a component is approved.
01 / QUALIFY

Set requirements before a component is approved.

What we require — Supplier capability, cell and component specifications, process controls, quality-system evidence, and change notification.

What we check — Engineering and quality teams review the supplier, production capability, documentation, and component fit for the intended design.

What we record — Approved supplier, component specification, qualification evidence, and controlled change record.

Why it matters — Safety design begins with components that consistently meet the product’s electrical, thermal, and mechanical requirements.

Confirm incoming cells, components, and materials.
02 / VERIFY

Confirm incoming cells, components, and materials.

What we require — Correct part, revision, lot information, documentation, appearance, dimensions, and applicable electrical or functional checks.

What we check — Incoming inspection and sampling confirm that received materials match approved specifications before they enter production.

What we record — Inspection result linked to supplier, component, purchase lot, and production intake.

Why it matters — Incoming verification helps prevent an unapproved material or variation from weakening the intended design.

Control the processes that turn components into a system.
03 / BUILD

Control the processes that turn components into a system.

What we require — Cell matching, battery-pack assembly, PCBA workmanship, thermal interfaces, firmware loading, and protection-function checks.

What we check — Defined in-process inspections and functional tests verify critical assembly and protection steps during production.

What we record — Process result linked to pack lot, PCBA revision, firmware version, workstation, and production time.

Why it matters — A strong design depends on repeatable manufacturing that preserves every intended safety layer.

Verify the finished product before release.
04 / VALIDATE

Verify the finished product before release.

What we require — Final functionality, charging, power output, indicators, protection behavior, appearance, labeling, and reliability sampling.

What we check — Finished units pass defined checks before shipment, supported by periodic reliability and audit testing.

What we record — Final-test result, release status, inspection data, and approved sampling records.

Why it matters — Final validation confirms that the assembled product behaves as intended before it reaches the customer.

Connect the finished serial number to its build history.
05 / TRACE

Connect the finished serial number to its build history.

What we require — Supported links between finished unit, battery pack, PCBA revision, component or cell lot, firmware, and final test.

What we check — Traceability records are reviewed for completeness and used to support service analysis and continued quality improvement.

What we record — Serial-linked product history and supported diagnostic or service information.

Why it matters — Traceability helps teams investigate efficiently, manage change, and improve future product and process decisions.

GLOBAL TESTING + COMPLIANCE

Global Safety Standards,
Clearly Documented

Review the safety standards, transport testing, product listings, declarations, and supporting documents for each product and market.

Select market
UN 38.3Global
Transport testing

Lithium cell and battery transport test requirements

IEC 62368-1Global
Equipment safety standard

Audio/video, IT and communication technology equipment safety

IEC 62133-2Global
Battery safety standard

Portable secondary lithium cell and battery safety

ETLUS / Canada
Product listing

Intertek cETLus listing to UL 62368-1 and CSA C22.2 No. 62368-1

FCCUS / Canada
Electromagnetic compliance

FCC Part 15 requirements for radio-frequency emissions

CEEurope
Manufacturer declaration

EU conformity under the Low Voltage, EMC, and Radio Equipment Directives

RoHSEurope
Material compliance

Restriction of hazardous substances in electrical and electronic equipment

UKCAUK
UK conformity

UK Conformity Assessed marking under the UK Low Voltage regulations

PSEJapan
Market requirement

Electrical Appliance and Material Safety Act (DENAN) requirements

ISO 9001Global · Factory
Quality management

Certified quality management system at the manufacturing facility (ISO 9001:2015)

ISO 14001Global · Factory
Environmental management

Certified environmental management system at the manufacturing facility (ISO 14001:2015)

POWER SAFETY RESOURCES

Learn More
About Safer Power

Explore Japan's public safety guidance, go deeper into layered engineering, or use an evidence-led guide to evaluate lithium-battery products and vendors.

02 Engineering Deep Dive

Explore the engineering behind layered protection.

How do the different safety systems work together?

Go beyond the page overview into cell selection, power architecture, termal sensing, firmware, materials, and system-level protection.

Explore topic
03 Product + Vendor Selection

Choose lithium-battery products with evidence.

What should buyers verify before selecting a product or supplier?

A practical guide to product fit, model-specific evidence, qualified vendors, manufacturing controls, support, and long-term use.

Explore topic

PRODUCT SUPPORT

Need help
with your product?

Tell us what product you have and what you are seeing. This gives the support team the context needed to help with setup, indicators, maintenance, service, replacement, or recycling.

WHAT TO INCLUDE:

Product model and serial number

The indicator or condition you observed

What happened immediately before it appeared
